C031-2 Removable-Membrane Raman Cell

Product overview

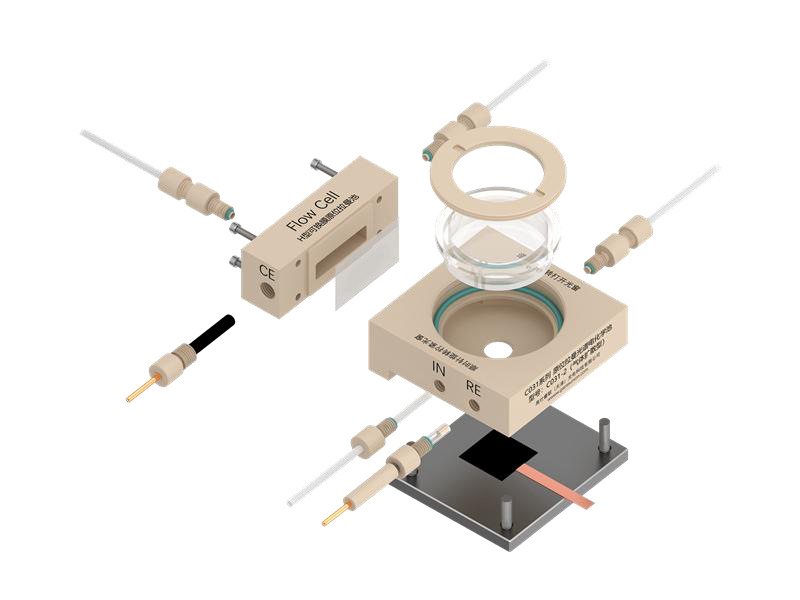

The C031-2 separates the working and counter compartments with a replaceable ion-exchange membrane. Its reference electrode sits in the working-electrode compartment, while the working surface is observed through a quartz window. The catalog specifies that the user prepares the membrane; include membrane dimensions and electrode scope in your enquiry.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK cell body; quartz window; separate ion-exchange membrane
Catalog model	C031-2
Body material	PEEK
Optical window	Quartz; 37 mm diameter
Working electrode area	Standard 1 cm²
Electrode-to-window distance	Less than 6 mm
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Separated-compartment Raman electrochemistry
Membrane-based electrode studies
Flow spectroelectrochemical measurements

Before you order

Provide the membrane type and replacement dimensions.
Confirm the Raman objective and optical clearance.
Specify working, reference and counter electrodes separately.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 5 ↗Download PDF

Selection questions

What should a custom enquiry include?

For C031-2 Removable-Membrane Raman Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
