C031-1 In-Situ Raman Electrochemical Cell

Product overview

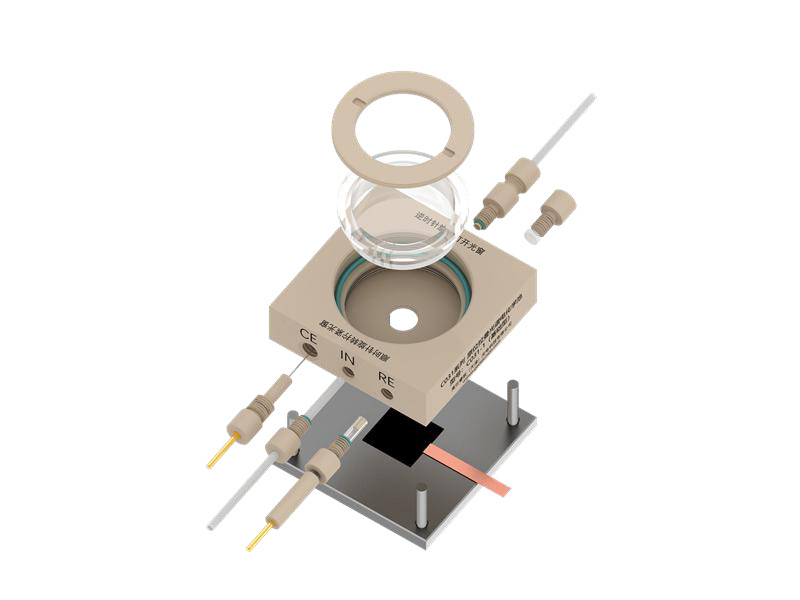

The C031-1 positions a sheet working electrode beneath the optical window for simultaneous electrochemistry and optical observation. The catalog describes a PEEK body that opens for cleaning and supports electrolyte injection or flow. Check the optical access and electrode dimensions against your Raman instrument before defining the assembly.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK cell body; quartz optical window
Catalog model	C031-1
Optical window	Quartz; 37 mm diameter
Working electrode area	Standard 1 cm²; custom dimensions by enquiry
Electrode-to-window distance	Less than 6 mm
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

In-situ Raman measurements
Electrode-surface observation
Flow spectroelectrochemistry

Before you order

Confirm optical access and instrument clearance.
Specify the sheet working electrode, which the catalog lists separately.
Identify the required reference and counter electrode configuration.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 4 ↗Download PDF

Selection questions

What should a custom enquiry include?

For C031-1 In-Situ Raman Electrochemical Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
