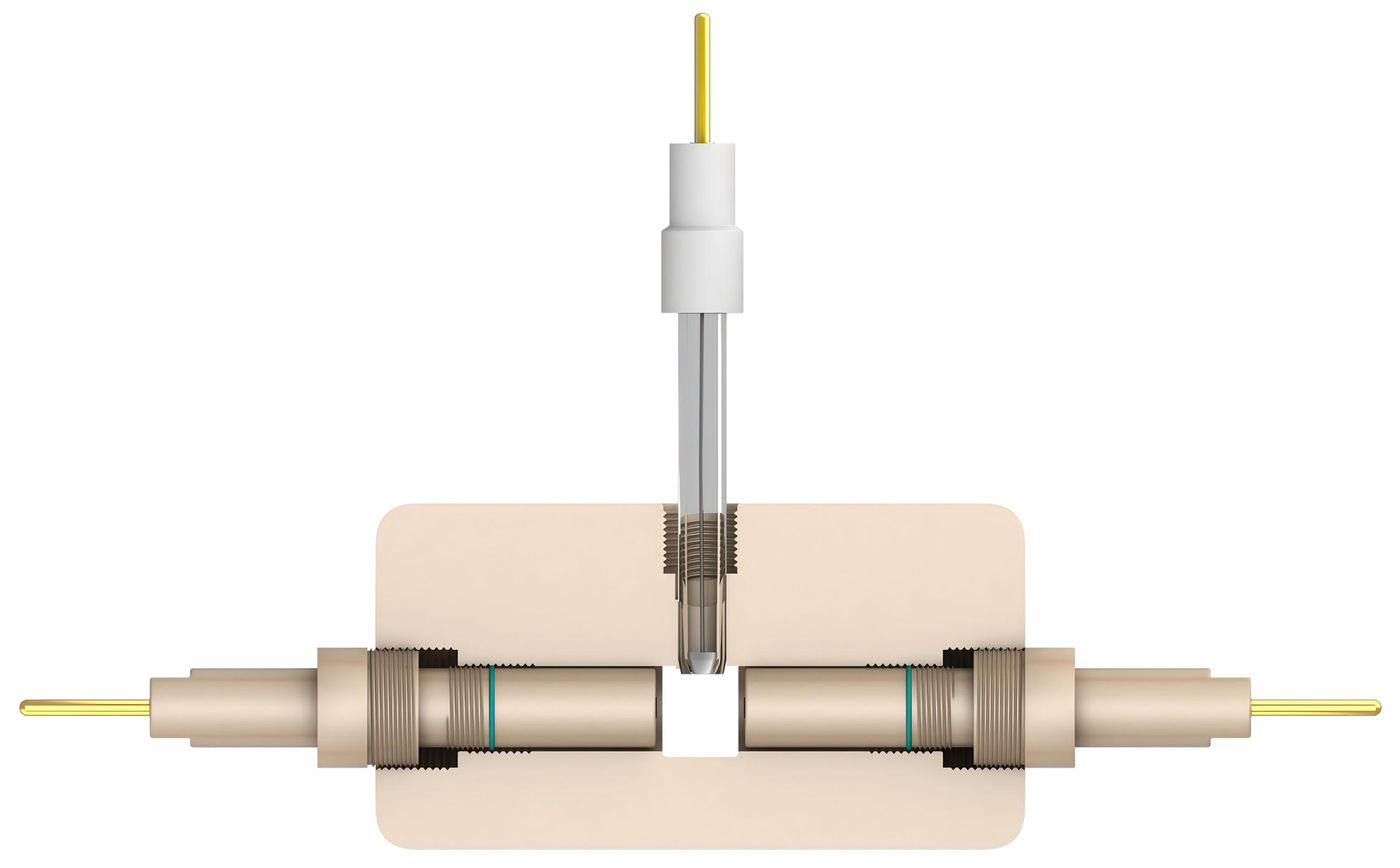

B001-4 Visual Three-Electrode Battery Cell

Product overview

The catalog defines B001-4 as the reference-port version of the B001-3 visual battery cell. It supports a three-electrode experiment while retaining the optical observation arrangement. Include the reference chemistry, specimen dimensions and viewing geometry with your enquiry rather than selecting solely by the body form shown in the image.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	Visual battery-cell arrangement with reference port
Catalog model	B001-4
Electrode arrangement	Three electrodes
Design basis	B001-3 visual battery cell
Additional interface	Reference-electrode port
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Visual three-electrode battery measurements
Electrode-potential comparison
In-situ battery-material studies

Before you order

Specify the reference electrode and its chemistry.
Confirm the sample diameter and optical access.
Define all contacts, seals and included leads.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 58 ↗Download PDF

Selection questions

What should a custom enquiry include?

For B001-4 Visual Three-Electrode Battery Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
