B001-1 Three-Electrode Battery Test Cell

Product overview

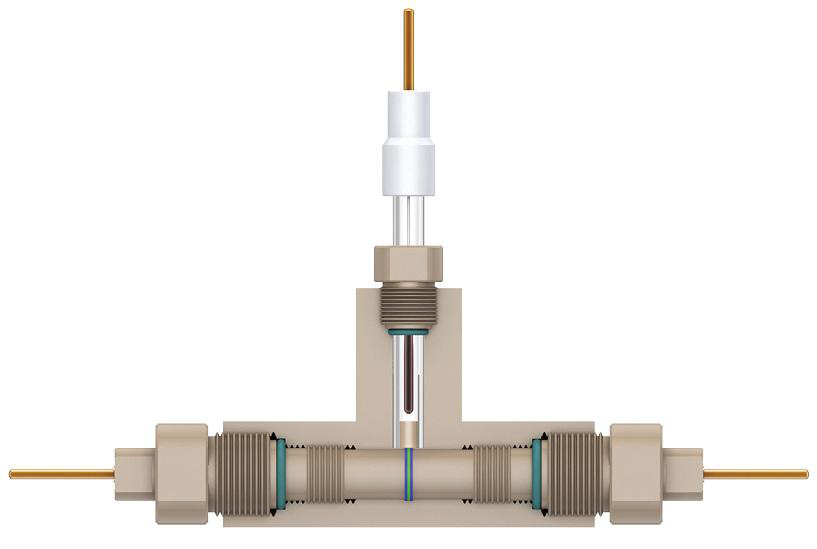

The B001-1 clamps two sample wafers and a separator between glassy carbon contacts for laboratory battery testing. A reference port provides the third-electrode arrangement and access for adding electrolyte. The catalog lists 10, 12 and 16 mm sample sizes; confirm the selected specimen geometry and electrochemical compatibility in the enquiry.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK body; glassy carbon contacts
Catalog model	B001-1
Body material	PEEK
Electrode arrangement	Three electrodes; Ag/AgCl reference in catalog configuration
Conductive contacts	Glassy carbon; catalog diameter 3 mm
Sample wafer sizes	10, 12 or 16 mm
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Three-electrode battery measurements
Coin-cell material screening
Laboratory electrode comparison

Before you order

Choose the sample wafer diameter.
Confirm that the reference chemistry suits the electrolyte.
Specify separator dimensions, compression needs and connection scope.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 57 ↗Download PDF

Selection questions

What should a custom enquiry include?

For B001-1 Three-Electrode Battery Test Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
