B-VRB Vanadium Redox Flow Battery Cell

Product overview

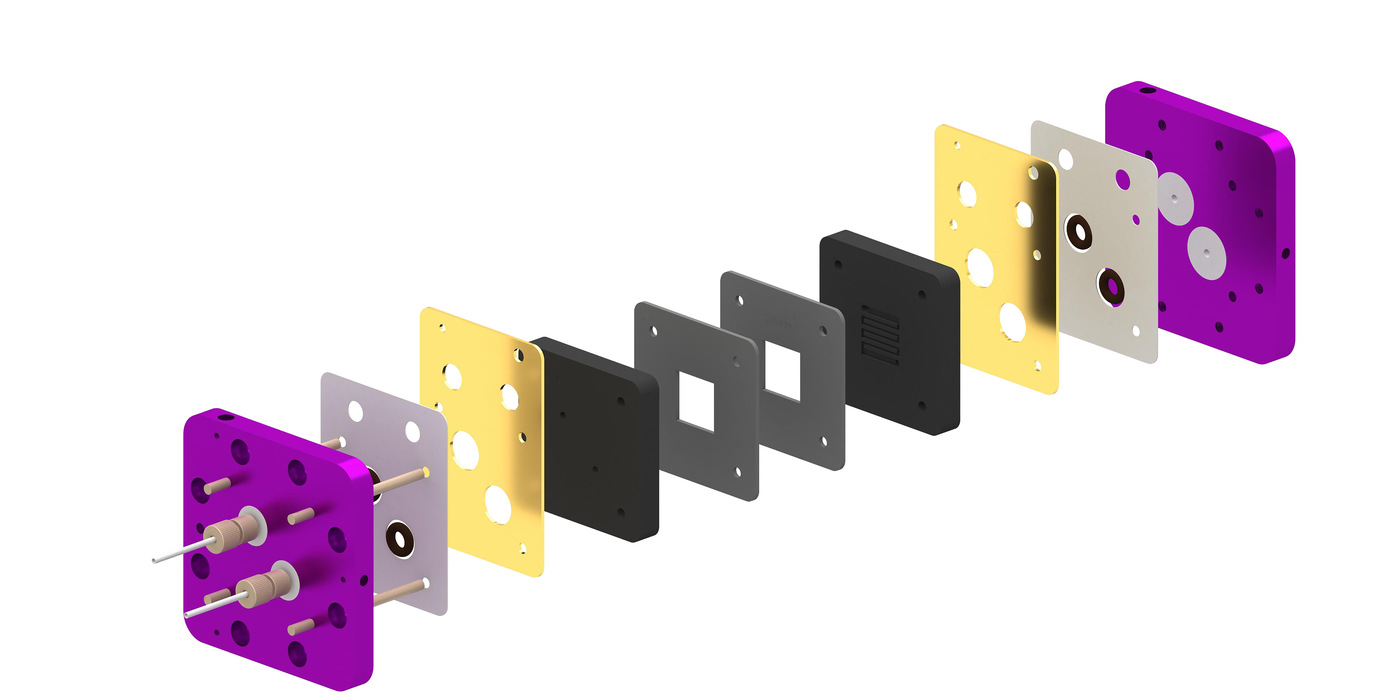

The B-VRB is a laboratory vanadium redox flow battery cell assembled from end plates, current collectors, bipolar plates and electrode frames. The catalog lists high-purity graphite bipolar plates with PEEK fixing rods and a 50 cm² flow-channel area. Specify the membrane, electrodes and fluid interfaces separately when defining the required test assembly.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	Graphite bipolar plates; PEEK fixing rods
Catalog model	B-VRB
Catalog flow-channel area	50 cm²; custom dimensions by enquiry
Bipolar plates	High-purity graphite
Fixing rods	PEEK
Cell components	End plates, current collectors, bipolar plates and electrode frames
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Vanadium redox flow battery studies
Flow-battery component evaluation
Laboratory energy-storage research

Before you order

Confirm active geometry and required flow-channel area.
Specify the membrane, electrodes and electrolyte interfaces.
Define external pumps, reservoirs and test-instrument scope separately.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 62 ↗Download PDF

Selection questions

What should a custom enquiry include?

For B-VRB Vanadium Redox Flow Battery Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
