Zn-2 Metal-Air Battery Test Cell

Product overview

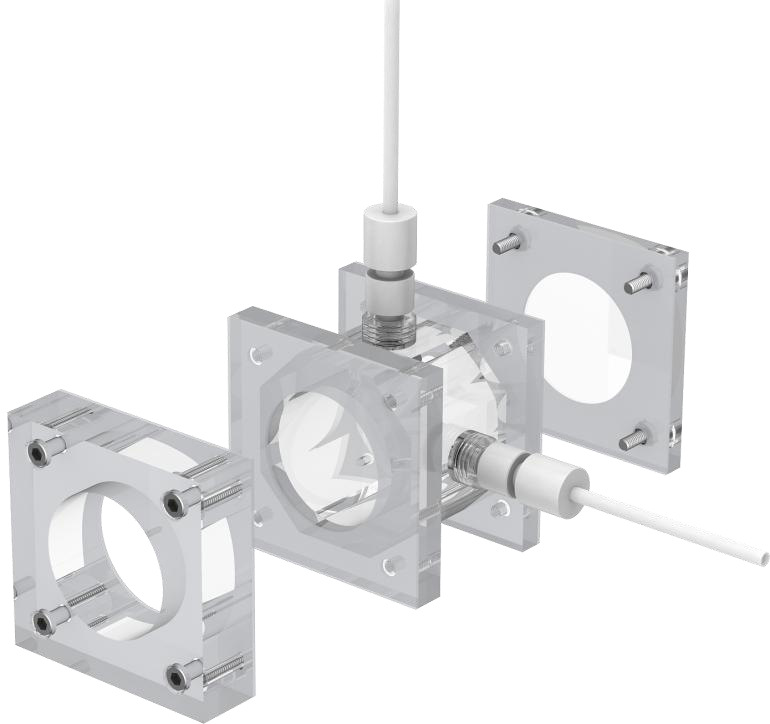

Model Zn-2 is listed alongside Zn-1 as a separate PMMA metal-air battery test-cell configuration. The catalog provides 30 mL and 50 mL volume options and shows its assembly arrangement. Request the model drawing and confirm the electrode interfaces when matching a specific laboratory setup; the volume alone does not define the complete cell.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PMMA (acrylic)
Catalog model	Zn-2
Body material	PMMA (acrylic)
Catalog volume options	30 mL or 50 mL
Gas handling	Gas circulation supported
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Metal-air battery development
Air-electrode measurements
Laboratory gas-fed battery tests

Before you order

Request the Zn-2 assembly drawing.
Confirm the volume and electrode interfaces.
Specify gas circulation, sealing and accessories.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 59 ↗Download PDF

Selection questions

What should a custom enquiry include?

For Zn-2 Metal-Air Battery Test Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
